## Percent pNNx (ppNNx) Distribution for Record 16265

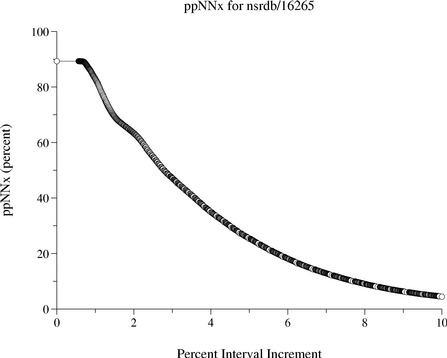

In the figure below is plotted the pNNx distribution in percent vs.
the NN interval increment expressed as a percentage of the initial
interval in each pair of NN intervals.
The Y-axis gives the percentage of NN interval increments greater than
each interval increment on the X-axis.

This figure was created using
`pNNx` and
`plt`, as follows:

pNNx -r nsrdb/16265 -a atr -p >16265.ppNNx
( plt 0 1 -xa 0 10 1 -ya 0 100 10 -t "ppNNx for nsrdb/16265" \
-x "Percent Interval Increment" -y "ppNNx (percent)" -T lw <16265.ppNNx
plt 0 1 -pS0 -X 0 100 -Y 0 100 -setxy -T lw <16265.ppNNx ) | \
lwcat -png >16265.ppNNx.png
