2.2.1 Patient

A patient in the MIMIC II database is uniquely identified by an integer number called Subject_ID, it can be thought of as a medical record number (MRN) normally found in hospital information systems. The basic information for any given patient is stored in the table D_PATIENTS, normally referred as the patient table throughout this document. As the database went through a careful de-identification process, the patient table only stores the patient identifier (Subject_ID), gender (sex) and date of birth (dob, shifted). Table 2.1 shows a sample content of the patient table resulted from the query in listing 2.1.


SUBJECT_ID SEX DOB DOD HOSPITAL_EXPIRE_FLG
7049 M 04/10/1952 03/18/2020 N
7060 F 08/01/1932 (null) N
7072 M 02/22/1928 03/20/1999 Y
7078 F 11/11/1967 10/17/2012 Y
9181 F 03/11/1960 02/16/2007 Y
9185 M 02/28/1927 (null) N
9195 F 12/19/1974 (null) N
% latex2html id marker 7850
$\textstyle \parbox{0.8\textwidth }{
\caption[Cont...
...death and flag indicating whether or not the
patient died in the hospital.
} }$

The date of death for patients who died in the hospital is taken to be the date of discharge. For other patients, date of death was obtained from social security death records from the US government.

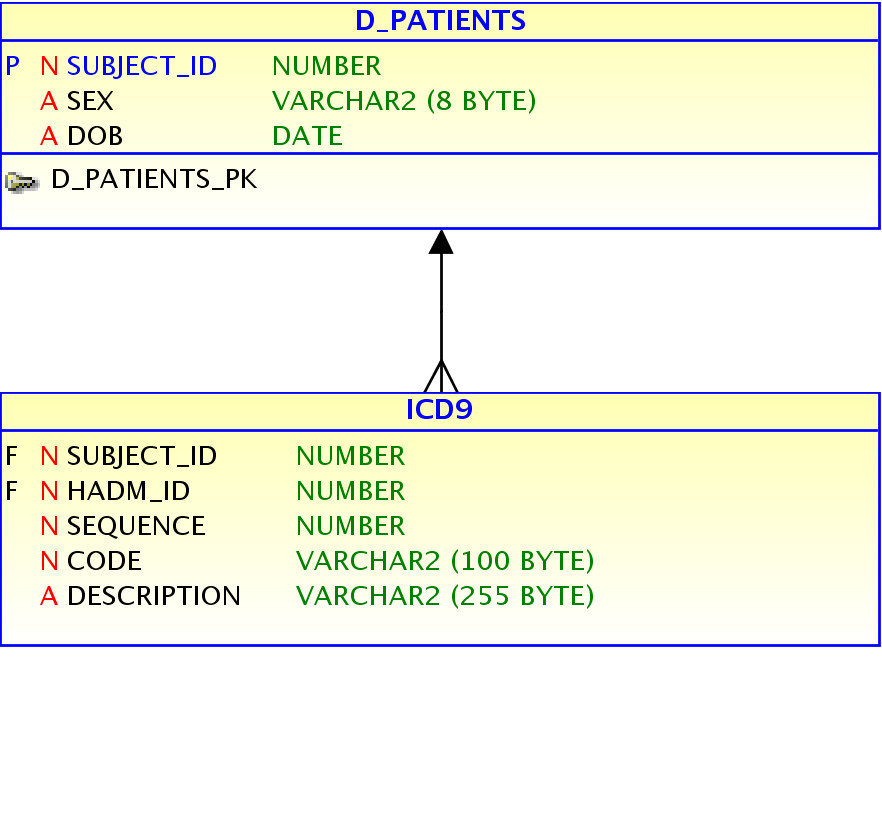

As shown in Figure 2.1, the patient identifier (Subject_ID) is widely used by most of the tables throughout the database to specify to which patient a given measurement or recording refers to. Figure 2.2 shows an example relating which diagnosis codes (ICD-9) were assigned to a given patient, the Subject_ID field links the ICD-9 and the patient tables. The ICD-9 table records the ICD-9 codes applied to a particular patient during a specific hospitalization period.

Image Patient_ICD9 % latex2html id marker 7851
$\textstyle \parbox{0.8\textwidth }{
\caption[Pati...
...ord in the patient table via a foreign key on the
{\em Subject\_ID} field.}
}$
