Patient input/output (IO) data is recorded in the ioevents, d_ioitems, a_iodurations,
deliveries, totalbalevents and additives tables. The relationships are
shown in Figure 2.10.

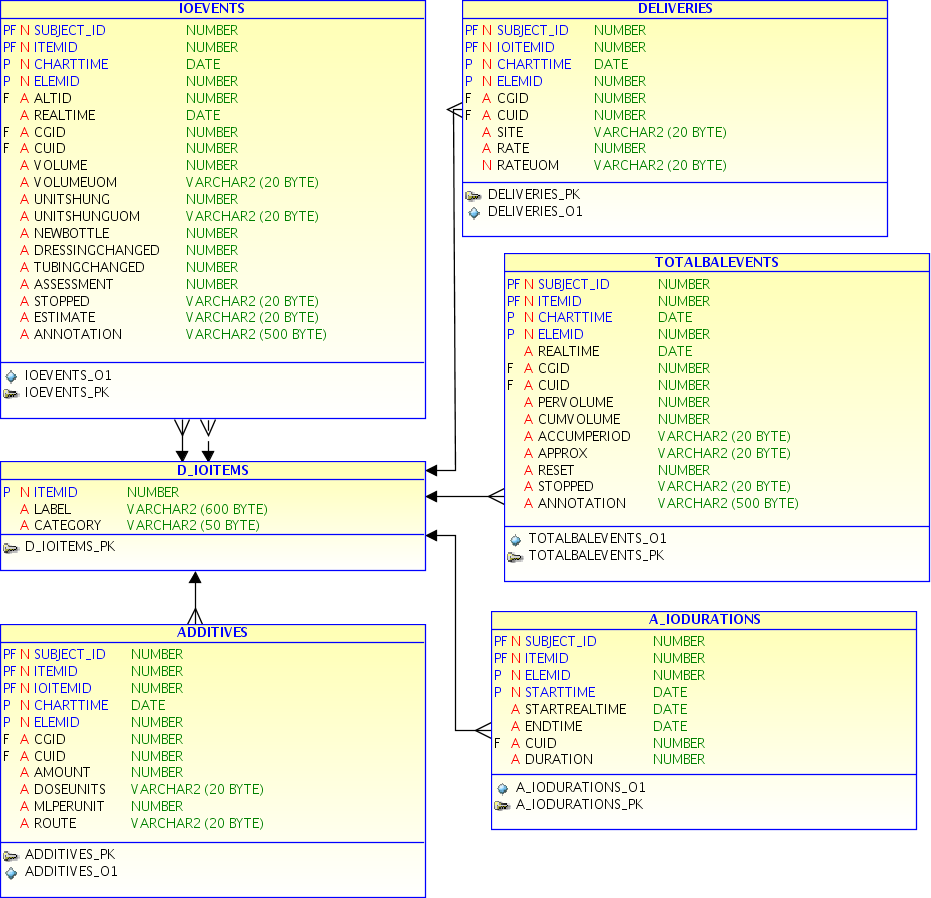

Figure 2.10:
Patient IO data is stored in 6
tables. The ioevents, d_ioitems, a_iodurations, deliveries,
totalbalevents and additives tables record all data related to
patient charts.
|
|
