TWAnalyser: A T-wave alternans detector

This package needs work, and you can help! Minor revisions are needed to allow TWAnalyser to read its input using the WFDB Toolbox for MATLAB. If you are successful in making and testing these revisions, please share your solution with us. Thank you!

This software suite consists of Matlab implementations of the widely used Spectral Method (SM) and Modified Moving Average (MMA) for T-wave alternans (TWA) detection. It was initially developed for the PhysioNet/CinC Challenge 2008, in which these and a wide variety of other methods were evaluated and compared in blinded tests, using a data set that included ECGs with and without TWA as well as synthetic ECGs with calibrated amounts of artificial TWA. The implementation of SM presented here scored second in the open-source category and third overall with a score of 0.881. TWAanalyser's implementation of MMA received a score of 0.400. (A third method, which combined both algorithms, scored 0.834, not quite as well as SM alone. In this case, ECGs in which SM did not detect TWA were assigned a TWA estimate of 0, and all others were assigned the MMA algorithm's TWA estimate.) Most of the work to improve the score resulted from adjustments to filtering and alignment.

TWAnalyser has been tested on both Windows XP (SP2) and Linux (Fedora Core 4-9) using Matlab R13 (6.5) and R2006b (7.3).

Prerequisites

Data

TWAnalyser accepts digitized ECGs in PhysioBank-compatible formats. If you have ECGs in some other format and have Matlab software for reading them, it's not too difficult to modify TWAnalyser to work with your format. Otherwise, create PhysioBank-compatible records from your ECGs. If you wish to analyze a lengthy recording, you may wish to divide it into short segments (a few minutes each) first; this will save a lot of time.

TWAnalyser requires a set of Q-onset, S-end, and T-end annotations for the ECGs to be analysed. If these are not available, TWAnalyser uses ecgpuwave to produce them. You also have the option of providing your own annotation files. In that case the names of the annotation files should end with .vf or .pu and their contents should mimic the format used by ecgpuwave. Specifically, annotation files should be stored in PhysioBank-compatible format, and they should include:

• Q-onset annotations (anntyp = WFON, num = 1, chan = 0)
• S-end annotations (anntyp = WFOFF, num = 1, chan = 0)
• T-end annotations (anntyp = WFOFF, num = 2, chan = 0)

Read about annotations here.

Software

TWAnalyser requires Matlab, WFDB, and WFDB_tools. If the required annotations (see above) are not already available for the ECGs to be analyzed, ecgpuwave is also required. TWAnalyser and all of its prerequisite software are freely available under the terms of the GPL, with the exception of Matlab. It may be possible to run TWAnalyser using GNU Octave or another freely available replacement for Matlab, but this has not been tested.

Installation

Under Linux:

1. Install Matlab, WFDB, WFDB_tools, and ecgpuwave if you have not already done so.
2. Download and unpack twa-mfiles.tar.gz (or twa-mfiles.zip; or download individual source files for TWAnalyser here).
3. Add the twa-mfiles directory to the Matlab path.

Under Windows, you may follow the same procedure as for Linux. Alternatively:

1. Install Matlab if you have not already done so.
2. Download and unpack twa-windows.zip.
3. Enter the twa-windows directory and run setup.bat from the Windows command prompt.

Using TWAnalyser

There are three commands that will start the analysis for you. From the Matlab command prompt type one of the following:

DoTWASpectral [performs the SM and provides a graphical interface to explore the results]

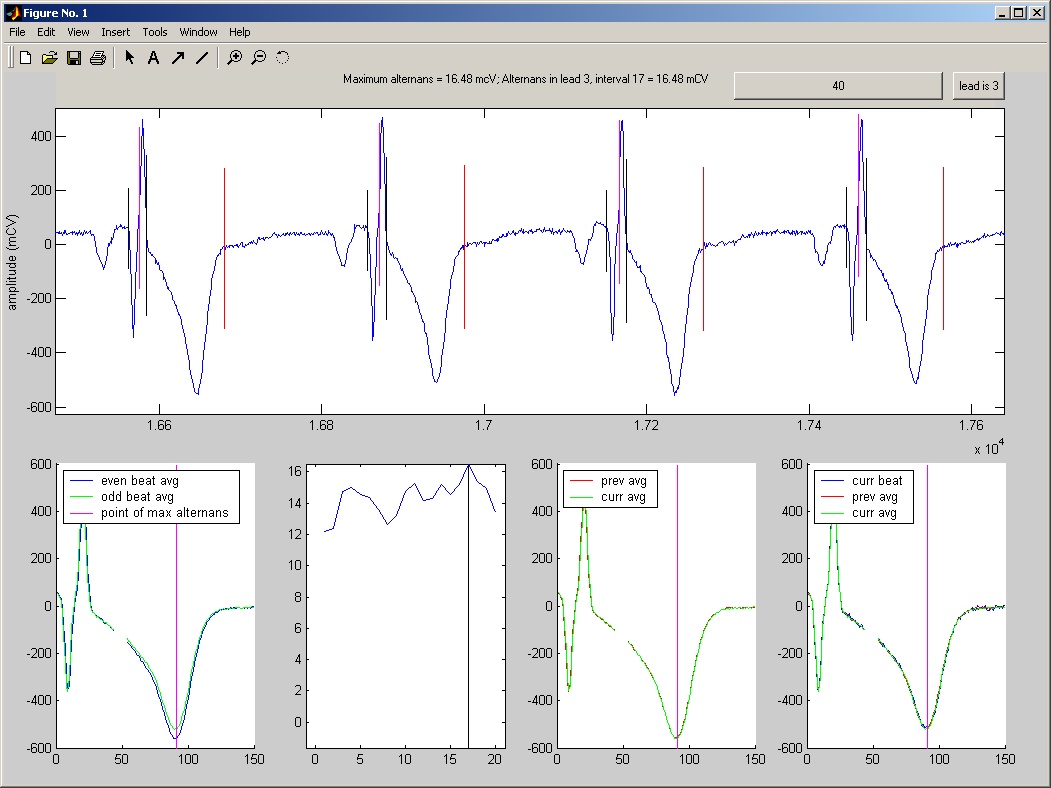

DoTWAbyMMA [performs the MMA and provides a graphical interface to explore the results]

BatchTWA [performs a batch analysis for a set of records and outputs results into a text file]

Future work

We have a long to-do list planned for this software, including: pre-filtering with PCA (as was used by the winning closed-source entry in the competition, although this entry did not provide TWA magnitudes, only rankings); reporting of heart rate (TWA that manifests above 110 BPM is unlikely to be clinically significant); tests to determine the effects of the unevenly sampled nature of TWA; dealing with TWA phase changes (after ectopy for example) and indicators to quantify this effect.

References

• Khaustov A, Nemati S, Clifford GD An open-source standard T-wave alternans detector for benchmarking signals. Computers in Cardiology 2008. The conference presentation of this work is also available here ([HTML] or [PPT]).
• Martinez JP, Olmos S Methodological principles of T wave alternans analysis: a unified framework. IEEE Transactions on Biomedical Engineering 52(4): 599-613; April 2005. [External link; requires subscription. The descriptions of the SM and MMA methods in this paper were the basis for the implementations of these methods presented here.]

Credits

This project was a joint effort by Alexander Khaustov of the St.-Petersburg Institute of Cardiological Technics (INCART), and by Shamim Nemati and Gari Clifford of MIT. The software was contributed to PhysioNet by INCART. Please refer your questions to avk@incart.ru.
