Combined measurement of ECG, breathing and seismocardiogram (CEBS database)

The new PhysioNet website is available at: https://physionet.org. We welcome your feedback.

When referencing this material, please cite:

Garcia-Gonzalez, M.A.; Argelagos-Palau, A.; Fernandez-Chimeno, M.; Ramos-Castro, J., "A comparison of heartbeat detectors for the seismocardiogram," Computing in Cardiology Conference (CinC), 2013

Garcia-Gonzalez, M.A.; Argelagos-Palau, A.; Fernandez-Chimeno, M.; Ramos-Castro, J., "Differences in QRS Locations due to ECG Lead: Relationship with Breathing", XIII Mediterranean Conference on Medical and Biological Engineering and Computing 2013, IFMBE Proceedings Volume 41, 2014, pp 962-964 Sept. 2013
DOI: 10.1007/978-3-319-00846-2_238

Please also include the standard citation for PhysioNet:

Goldberger AL, Amaral LAN, Glass L, Hausdorff JM, Ivanov PCh, Mark RG, Mietus JE, Moody GB, Peng C-K, Stanley HE. PhysioBank, PhysioToolkit, and PhysioNet: Components of a New Research Resource for Complex Physiologic Signals. Circulation 101(23):e215-e220 [Circulation Electronic Pages; http://circ.ahajournals.org/cgi/content/full/101/23/e215]; 2000 (June 13).

Combined measurement of ECG, breathing and seismocardiogram (CEBS database), version 1.1

This database was developed by Miguel Angel Garcia Gonzalez and Ariadna Argelagos Palou from the Electronic and Biomedical Instrumentation (IEB) research group of the Electronic Engineering (DEE) Department of the Universitat Politecnica de Catalunya (UPC).

The purpose of the database was twofold:

  1. To check if slight errors in the detection of the RR time series when measuring it using two different leads are influenced by breathing.
  2. To compare the RR time series obtained from the ECG and its surrogate measure obtained from the seismocardiogram or SCG (and to optimize beat detectors for SCG).

To construct the database, 20 presumed healthy volunteers were measured. Information of the subjects is summarized in the info.txt file. During the measurement, the subjects were asked to be very still in supine position on a comfortable conventional single bed and awake. After attachment of sensors, we recorded the basal state of the subjects by measuring during 5 minutes (records a001 to a020). After that, the subjects started to listening classical music during approximately 50 minutes (records m001 to m020). Finally, we monitored all subjects 5 minutes more after the music ended (records p001 to p020).

Data was acquired using a Biopac MP36 data acquisition system (Santa Barbara, CA, USA). Channels 1 and 2 of the system were devoted to measure conventional ECG (leads I and II respectively) with a bandwidth between 0.05 Hz and 150 Hz, channel 3 was employed to measure the respiratory signal obtained from a thoracic piezoresistive band (SS5LB sensor by Biopac, Santa Barbara, CA, USA) with a bandwidth of 0.05 Hz to 10 Hzand channel 4 was devoted to acquire the SCG using a triaxial accelerometer (LIS344ALH, ST Microelectronics) and a bandwidth between 0.5 Hz and 100 Hz. For the ECG measurement we used monitoring electrodes with foam tape and sticky gel (3M Red Dot 2560). Each channel was sampled at 5 kHz.

Note on detected incidences:

Version history

Version 1.1 (August XX, 2015):
The records b001 through b020 that were previously included here have been replaced with a001 through a020. In the first release of this database, these signal files were accidentally created as copies of p001 through p020. They have been replaced with the correct files, and the records have been renamed to avoid confusion.

Database files

Icon  Name                    Last modified      Size  Description
[PARENTDIR] Parent Directory                             -
[   ] MD5SUMS                 2015-08-11 16:46  7.8K
[   ] RECORDS                 2015-08-11 16:45  300   list of record names
[   ] SHA1SUMS                2015-08-11 16:46  9.2K
[   ] SHA256SUMS              2015-08-11 16:47   14K
[   ] a001.atr                2014-12-08 10:48  6.4K  reference annotations
[   ] a001.dat                2014-11-25 11:02   10M  digitized signal(s)
[   ] a001.hea                2015-08-11 15:47  249   header file
[   ] a002.atr                2014-12-08 10:48  6.7K  reference annotations
[   ] a002.dat                2014-12-04 06:20   11M  digitized signal(s)
[   ] a002.hea                2015-08-11 15:47  247   header file
[   ] a003.atr                2014-12-08 10:48  7.4K  reference annotations
[   ] a003.dat                2014-12-04 06:40   11M  digitized signal(s)
[   ] a003.hea                2015-08-11 15:47  247   header file
[   ] a004.atr                2014-12-08 10:48  6.8K  reference annotations
[   ] a004.dat                2014-12-04 06:59   11M  digitized signal(s)
[   ] a004.hea                2015-08-11 15:47  249   header file
[   ] a005.atr                2014-12-08 10:48  7.5K  reference annotations
[   ] a005.dat                2014-12-04 08:13   11M  digitized signal(s)
[   ] a005.hea                2015-08-11 15:47  247   header file
[   ] a006.atr                2014-12-08 10:48  7.0K  reference annotations
[   ] a006.dat                2014-12-04 08:33   11M  digitized signal(s)
[   ] a006.hea                2015-08-11 15:47  248   header file
[   ] a007.atr                2014-12-08 10:48  6.1K  reference annotations
[   ] a007.dat                2014-12-04 08:48   11M  digitized signal(s)
[   ] a007.hea                2015-08-11 15:47  250   header file
[   ] a008.atr                2014-12-08 10:48   11K  reference annotations
[   ] a008.dat                2014-12-04 08:59   11M  digitized signal(s)
[   ] a008.hea                2015-08-11 15:47  245   header file
[   ] a009.atr                2014-12-08 10:48  6.9K  reference annotations
[   ] a009.dat                2014-12-04 09:08   11M  digitized signal(s)
[   ] a009.hea                2015-08-11 15:47  244   header file
[   ] a010.atr                2014-12-08 10:48  6.6K  reference annotations
[   ] a010.dat                2014-12-04 09:15   11M  digitized signal(s)
[   ] a010.hea                2015-08-11 15:47  253   header file
[   ] a011.atr                2014-12-08 10:48  7.5K  reference annotations
[   ] a011.dat                2014-12-04 09:20   11M  digitized signal(s)
[   ] a011.hea                2015-08-11 15:47  250   header file
[   ] a012.atr                2014-12-08 10:48  8.6K  reference annotations
[   ] a012.dat                2014-12-04 09:28   11M  digitized signal(s)
[   ] a012.hea                2015-08-11 15:47  246   header file
[   ] a013.atr                2014-12-08 10:48  8.1K  reference annotations
[   ] a013.dat                2014-12-04 09:35   11M  digitized signal(s)
[   ] a013.hea                2015-08-11 15:47  248   header file
[   ] a014.atr                2014-12-08 10:48  7.4K  reference annotations
[   ] a014.dat                2014-12-04 09:42   11M  digitized signal(s)
[   ] a014.hea                2015-08-11 15:47  243   header file
[   ] a015.atr                2014-12-08 10:48  7.2K  reference annotations
[   ] a015.dat                2014-12-04 09:47   11M  digitized signal(s)
[   ] a015.hea                2015-08-11 15:47  243   header file
[   ] a016.atr                2014-12-08 10:48  8.2K  reference annotations
[   ] a016.dat                2014-12-04 09:56   11M  digitized signal(s)
[   ] a016.hea                2015-08-11 15:47  249   header file
[   ] a017.atr                2014-12-08 10:48  8.3K  reference annotations
[   ] a017.dat                2014-12-04 10:03   11M  digitized signal(s)
[   ] a017.hea                2015-08-11 15:47  251   header file
[   ] a018.atr                2014-12-08 10:48  9.3K  reference annotations
[   ] a018.dat                2014-12-04 10:25   11M  digitized signal(s)
[   ] a018.hea                2015-08-11 15:47  247   header file
[   ] a019.atr                2014-12-08 10:48  7.1K  reference annotations
[   ] a019.dat                2014-12-04 10:34   11M  digitized signal(s)
[   ] a019.hea                2015-08-11 15:47  249   header file
[   ] a020.atr                2014-12-08 10:48  7.2K  reference annotations
[   ] a020.dat                2014-12-04 10:41   11M  digitized signal(s)
[   ] a020.hea                2015-08-11 15:47  247   header file

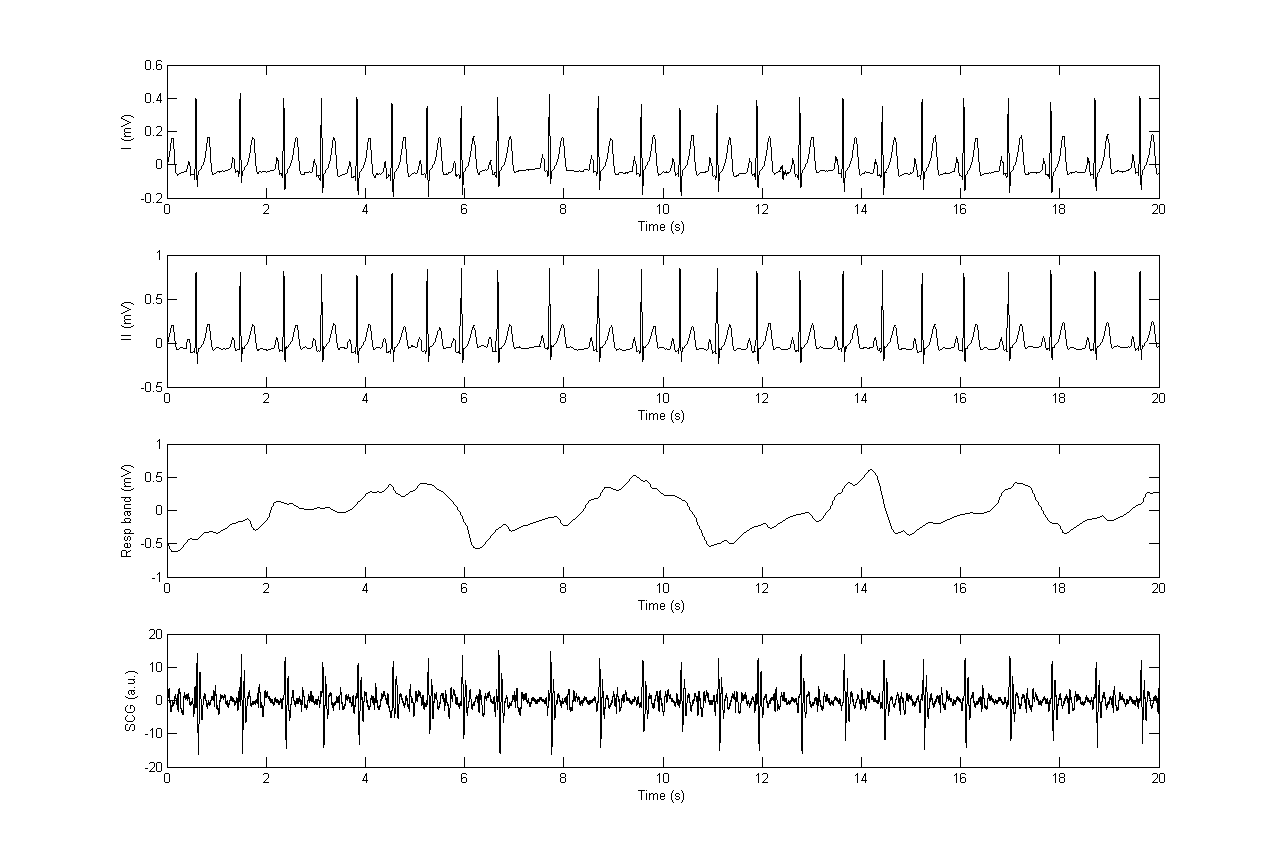

[IMG] example.png             2014-12-10 14:49   19K
[TXT] info.txt                2014-11-25 11:02  1.9K
[   ] m001.atr                2014-12-08 10:48   66K  reference annotations
[   ] m001.dat                2014-11-25 11:02  109M  digitized signal(s)
[   ] m001.hea                2015-07-29 13:20  252   header file
[   ] m002.atr                2014-12-08 10:48   70K  reference annotations
[   ] m002.dat                2014-11-25 11:02  114M  digitized signal(s)
[   ] m002.hea                2015-07-29 13:20  257   header file
[   ] m003.atr                2014-12-08 10:48   74K  reference annotations
[   ] m003.dat                2014-11-25 11:02  114M  digitized signal(s)
[   ] m003.hea                2015-07-29 13:20  250   header file
[   ] m004.atr                2014-12-08 10:48   74K  reference annotations
[   ] m004.dat                2014-11-25 11:02  114M  digitized signal(s)
[   ] m004.hea                2015-07-29 13:20  256   header file
[   ] m005.atr                2014-12-08 10:48   77K  reference annotations
[   ] m005.dat                2014-11-25 11:02  114M  digitized signal(s)
[   ] m005.hea                2015-07-29 13:20  254   header file
[   ] m006.atr                2014-12-08 10:48   67K  reference annotations
[   ] m006.dat                2014-11-25 11:02  114M  digitized signal(s)
[   ] m006.hea                2015-07-29 13:20  257   header file
[   ] m007.atr                2014-12-08 10:48   56K  reference annotations
[   ] m007.dat                2014-11-25 11:02  108M  digitized signal(s)
[   ] m007.hea                2015-07-29 13:20  254   header file
[   ] m008.atr                2014-12-08 10:48  108K  reference annotations
[   ] m008.dat                2014-11-25 11:02  114M  digitized signal(s)
[   ] m008.hea                2015-07-29 13:20  255   header file
[   ] m009.atr                2014-12-08 10:48   68K  reference annotations
[   ] m009.dat                2014-11-25 11:02  114M  digitized signal(s)
[   ] m009.hea                2015-07-29 13:20  251   header file
[   ] m010.atr                2014-12-08 10:48   64K  reference annotations
[   ] m010.dat                2014-11-25 11:02  114M  digitized signal(s)
[   ] m010.hea                2015-07-29 13:20  254   header file
[   ] m011.atr                2014-12-08 10:48   77K  reference annotations
[   ] m011.dat                2014-11-25 11:02  114M  digitized signal(s)
[   ] m011.hea                2015-07-29 13:20  255   header file
[   ] m012.atr                2014-12-08 10:48   86K  reference annotations
[   ] m012.dat                2014-11-25 11:02  114M  digitized signal(s)
[   ] m012.hea                2015-07-29 13:20  256   header file
[   ] m013.atr                2014-12-08 10:48   80K  reference annotations
[   ] m013.dat                2014-11-25 11:02  114M  digitized signal(s)
[   ] m013.hea                2015-07-29 13:20  257   header file
[   ] m014.atr                2014-12-08 10:48   73K  reference annotations
[   ] m014.dat                2014-11-25 11:02  114M  digitized signal(s)
[   ] m014.hea                2015-07-29 13:20  255   header file
[   ] m015.atr                2014-12-08 10:48   69K  reference annotations
[   ] m015.dat                2014-11-25 11:03  114M  digitized signal(s)
[   ] m015.hea                2015-07-29 13:20  255   header file
[   ] m016.atr                2014-12-08 10:48   83K  reference annotations
[   ] m016.dat                2014-11-25 11:03  114M  digitized signal(s)
[   ] m016.hea                2015-07-29 13:20  256   header file
[   ] m017.atr                2014-12-08 10:48   77K  reference annotations
[   ] m017.dat                2014-11-25 11:03  114M  digitized signal(s)
[   ] m017.hea                2015-07-29 13:20  254   header file
[   ] m018.atr                2014-12-08 10:48   88K  reference annotations
[   ] m018.dat                2014-11-25 11:03  114M  digitized signal(s)
[   ] m018.hea                2015-07-29 13:20  255   header file
[   ] m019.atr                2014-12-08 10:48   69K  reference annotations
[   ] m019.dat                2014-11-25 11:03  114M  digitized signal(s)
[   ] m019.hea                2015-07-29 13:20  253   header file
[   ] m020.atr                2014-12-08 10:48   73K  reference annotations
[   ] m020.dat                2014-11-25 11:03  114M  digitized signal(s)
[   ] m020.hea                2015-07-29 13:20  255   header file
[   ] p001.atr                2014-12-08 10:48  7.0K  reference annotations
[   ] p001.dat                2014-11-25 11:03   11M  digitized signal(s)
[   ] p001.hea                2015-07-29 13:20  258   header file
[   ] p002.atr                2014-12-08 10:48  6.6K  reference annotations
[   ] p002.dat                2014-11-25 11:03   11M  digitized signal(s)
[   ] p002.hea                2015-07-29 13:20  259   header file
[   ] p003.atr                2014-12-08 10:48  7.5K  reference annotations
[   ] p003.dat                2014-11-25 11:03   11M  digitized signal(s)
[   ] p003.hea                2015-07-29 13:20  261   header file
[   ] p004.atr                2014-12-08 10:48  7.0K  reference annotations
[   ] p004.dat                2014-11-25 11:03   11M  digitized signal(s)
[   ] p004.hea                2015-07-29 13:20  263   header file
[   ] p005.atr                2014-12-08 10:48  7.8K  reference annotations
[   ] p005.dat                2014-11-25 11:03   11M  digitized signal(s)
[   ] p005.hea                2015-07-29 13:20  263   header file
[   ] p006.atr                2014-12-08 10:48  6.6K  reference annotations
[   ] p006.dat                2014-11-25 11:03   11M  digitized signal(s)
[   ] p006.hea                2015-07-29 13:20  262   header file
[   ] p007.atr                2014-12-08 10:48  5.8K  reference annotations
[   ] p007.dat                2014-11-25 11:03   11M  digitized signal(s)
[   ] p007.hea                2015-07-29 13:20  263   header file
[   ] p008.atr                2014-12-08 10:48   10K  reference annotations
[   ] p008.dat                2014-11-25 11:03   11M  digitized signal(s)
[   ] p008.hea                2015-07-29 13:20  259   header file
[   ] p009.atr                2014-12-08 10:48  6.7K  reference annotations
[   ] p009.dat                2014-11-25 11:03   11M  digitized signal(s)
[   ] p009.hea                2015-07-29 13:20  263   header file
[   ] p010.atr                2014-12-08 10:48  6.6K  reference annotations
[   ] p010.dat                2014-11-25 11:03   11M  digitized signal(s)
[   ] p010.hea                2015-07-29 13:20  262   header file
[   ] p011.atr                2014-12-08 10:48  7.3K  reference annotations
[   ] p011.dat                2014-11-25 11:03   11M  digitized signal(s)
[   ] p011.hea                2015-07-29 13:20  262   header file
[   ] p012.atr                2014-12-08 10:48  8.7K  reference annotations
[   ] p012.dat                2014-11-25 11:03   11M  digitized signal(s)
[   ] p012.hea                2015-07-29 13:20  260   header file
[   ] p013.atr                2014-12-08 10:48  7.7K  reference annotations
[   ] p013.dat                2014-11-25 11:03   11M  digitized signal(s)
[   ] p013.hea                2015-07-29 13:20  260   header file
[   ] p014.atr                2014-12-08 10:48  7.4K  reference annotations
[   ] p014.dat                2014-11-25 11:03   11M  digitized signal(s)
[   ] p014.hea                2015-07-29 13:20  263   header file
[   ] p015.atr                2014-12-08 10:48  7.1K  reference annotations
[   ] p015.dat                2014-11-25 11:03   11M  digitized signal(s)
[   ] p015.hea                2015-07-29 13:20  260   header file
[   ] p016.atr                2014-12-08 10:48  7.6K  reference annotations
[   ] p016.dat                2014-11-25 11:03   11M  digitized signal(s)
[   ] p016.hea                2015-07-29 13:20  257   header file
[   ] p017.atr                2014-12-08 10:48  7.9K  reference annotations
[   ] p017.dat                2014-11-25 11:03   11M  digitized signal(s)
[   ] p017.hea                2015-07-29 13:20  263   header file
[   ] p018.atr                2014-12-08 10:48  8.6K  reference annotations
[   ] p018.dat                2014-11-25 11:03   11M  digitized signal(s)
[   ] p018.hea                2015-07-29 13:20  261   header file
[   ] p019.atr                2014-12-08 10:48  6.8K  reference annotations
[   ] p019.dat                2014-11-25 11:03   11M  digitized signal(s)
[   ] p019.hea                2015-07-29 13:20  264   header file
[   ] p020.atr                2014-12-08 10:48  7.3K  reference annotations
[   ] p020.dat                2014-11-25 11:03   11M  digitized signal(s)
[   ] p020.hea                2015-07-29 13:20  260   header file
Apache/2.4.25 (Debian) mod_auth_pgsql/2.0.3 mod_auth_tkt/2.1.0 OpenSSL/1.0.2u Server at archive.physionet.org Port 443
